LINKTools® HL7 TCP/IP Transmitter communicates with remote
system through TCP/IP socket connections. HL7 messages can
be wrapped using HL7 MLLP protocols or user-defined protocols
(headers and trailers). The LINKTools® HL7 TCP/IP transmitter
communication protocol is configured in the Transmitter Options
configuration window.
LINKTools® TCP/IP Transmitter can send and receive information
in virtually any formats over any protocols, effectively bridging
other systems with the LINKTools® Interface environment.
- LINKTools® HL7 TCP/IP Transmitter Features:
(LTTXFSV1.exe)
- Sends HL7 result and query messages.
- Receives HL7 acknowledgements and HL7 query response.
- Can be configured to send message length and size encoding
prior to sending actual HL7 message.
- Automatically re-send message if no acknowledgement is
received or remove message out of the queue.
- Can be configured to send non-HL7 message via TCP/IP user-defined
protocols such as XML documents, Words documents, PDF documents,
etc.

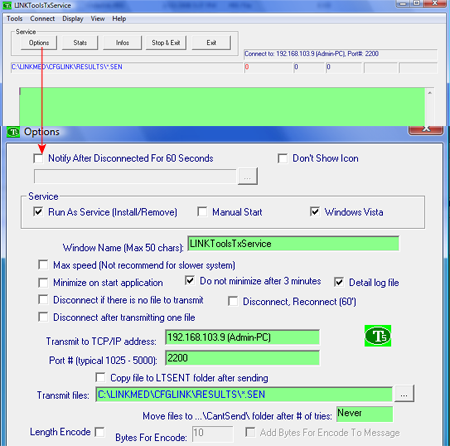

LINKTools® HL7 TCP/IP Transmitter Optons Dialog Box
|
