LINKMED® Intermediate Database Configuration

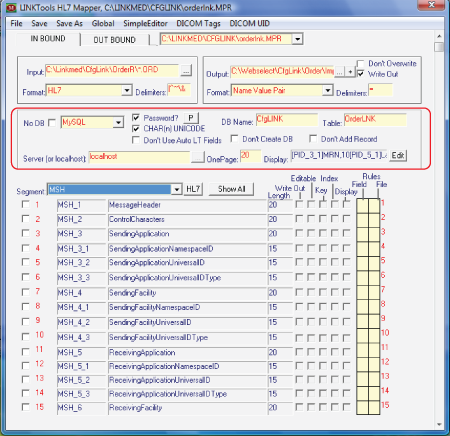

To select Interface intermediate database for your interface template, do the following:

No DB Column: Check the No DB check box if your interface does not required Intermediate database, if your interface required an intermediate database you select the database types that LINKMED® Interface can support. This store and forward database is used for bi-directional interface, for example ADT/Order/Result and Billing interface.
MySQL, MS SQL and Oracle SQL: In bi-directional interface using MySQL as an intermediate database is preferred. When you select MySQL (or MS SQL, Oracle SQL) from the drop down list the following SQL option fields are enabled
Password?: System Administration(SA) User and PW are required for SQL Database access. Click on the Mapper P button to access and configure this option.
DB Name Column: You name your DB (default CFGLINK)
Table Name Column: Continue from above, you name your SQL table (default OrderLNK)
Server (or Localhost) Column: This column automatically enable when MySQL, MS SQL or Oracle SQL intermediate database is selected, if the intermediate database resided on the same server as LINKMED® Interface, type localhost in the Server column, if the intermediate database (or permanent database) resided on the server within the same network click on the "..." to browse to the server database directory (required system administrator user name and password)
Note: Interface intermediate database other than DBF and MySQL are not included in the toolkit
