1. LINKMED® HL7 TCP/IP Receiver (LTRXMSV1.exe)
   This LINKMED® HL7 TCP/IP Receiver (Inbound communication) is used in ADT/Order and Result interface where Order information required ADT information updated. The new Receiver processes messages and directly inserts parsed message information to client database and LINKMED® Interface intermediate database or send HL7 response to query message in HL7 result interface
   LINKMED® HL7 TCP/IP Receiver is shipped with a generic configuration. This could be reconfigured as necessary to accommodate your interface requirements
2. LINKMED® HL7 TCP/IP Receiver Configuration
   Before you begin
   You need the following information in order to configure the Receiver to receive HL7 message and send HL7 acknowledgements:
   • Your system IP address
   • Your system listening port numbers
   • Your Mapper Interface Template
3. About The Receiver Options Configuration Window
   When you start the receiver from LINKMED® Interface Programs folder:
   Start>LINK Medical>LINKMED® Interface>LINK Receiver Service, the receiver window appears. From this window you can do the following:
   • Configure the Receiver to receive HL7 ADT/Order messages
   • Configure the Receiver to send standard HL7 acknowledgments
   • Configure the Receiver to send HL7 query response
   • Make multiple copies of messagea received
   • Filtering un-wanted HL7 message types
   • Get statistic on interface transactions


Next>>>

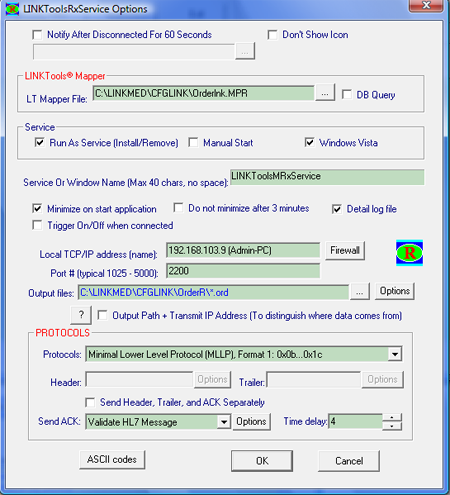

LINKMED® HL7 TCP/IP Receiver Options Window

Next>>>
