LINKMED DICOM
LINKMED DICOM is the newest addition to LINKTools® products
line providing real-time data conversion from HL7, XML to DICOM
and from DICOM to HL7, XML or other formats (works with any modality).
Features:
-
HL7 TCP/IP Receiver
-
HL7 TCP/IP Transmitter
-
Dynamic message Mapper
-
Web-enabled Interface Engine
-
Interface Maintaining Utilities
LINKMED DICOM provides the following interfaces:
HL7
-
Receives HL7 ADT, Order, Scheduling messages from HIS/EMR systems
-
Converts HL7 messages to DICOM files
-
Converts DICOM files to HL7 messages (ORU)
-
Sends HL7 messages (ORU) to HIS/EMR systems
- Converts XML message to DICOM file
- Converts DICOM file to XML message

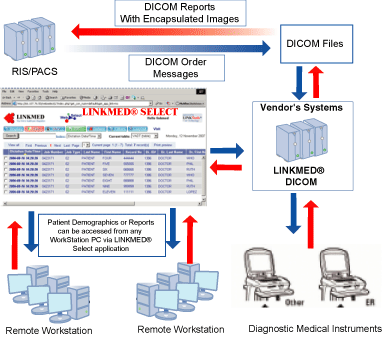

HIS/EMR sends XML messages--------->LINKMED DICOM-------> DICOM Files (Vendor's System)
Vendor's DICOM Files------------>LINKMED DICOM---------->XML Messages ----->HIS/EMR
HIS/EMR sends HL7 messages--------->LINKMED DICOM-------> DICOM Files (Vendor's System)
Vendor's DICOM Files------------>LINKMED DICOM---------->HL7 Messages ----->HIS/EMR
XML
|
System requirements:
|
Minimum
|
Recommended
|
| CPU | Pentium Class 1.0 GHZ | Pentium Dual/Quad Core 2.0 GHZ or higher |
| Storage Space | 100 GB Hard Drive | > 200 GB Hard Drive |
| Operating System | Windows® 2000/XP Pro | Windows® Server 2000/2003 Vista or above |
| Random Access Memory | 1 GB of RAM | 2 to 4 GB of RAM |
| Local Area Network | 100/1000 | 100/1000 |
| Optional IIS* installed | IIS 6 | IIS 6 or above |
| * IIS=Microsoft® Internet Information Services | ||
