LINKTools® IDK Tutorial: LINKTools® Message Mapper

LINKTools® Message Mapper

The LINK Mapper application enables you to create and modify your interface templates. These Mapper templates insert or extract ADT/Order information form the HL7 message that had been configured in the template and converts them to appropriate format that can be inserted to your system database. For example the Inbound Mapper is configured to convert HL7 to User delimiters and converts transcribed text report to HL7 message on the Outbound. LINKTools® IDK ships with several Mapper interface templates that are pre-configured for different HIS or clinical systems, additional HL7 segments or Fields can be added or modified using the LINK Mapper application

LINKTools® Mapper features:

  • Native support for standard HL7 version 2.x and HL7 version 3 (when available), also support other standard messaging format such as: XML, ASTM, ASCII, CSV, NVP, SQL and user- defined.
  • Graphical user interface (GUI) allows user to visually learn its functionalities in order to create an interface template in a short time.
  • Mapping data from one format to virtually any another format including the "What you want" format.
  • Built-in HL7 message library (up to version 2.6).
  • Supports new ASTM CCR and HL7 CDA.
  • Featuring check box located next to HL7 segment's fields allowing users to check only the segment field needed to include in their interfaces.
  • Available internal intermediate database for storing un-needed data but needed to re-create HL7 result message (ORU)to send back to the HIS or EMR systems (DBF or MySQL) when bi-directional interface is required.
  • Easy to learn "Mapper Rules" (the LINKTools® Interface Engine Tags) uses for data manipulation such as moving value from one filed to another or concatenate data from many fields and output into one field

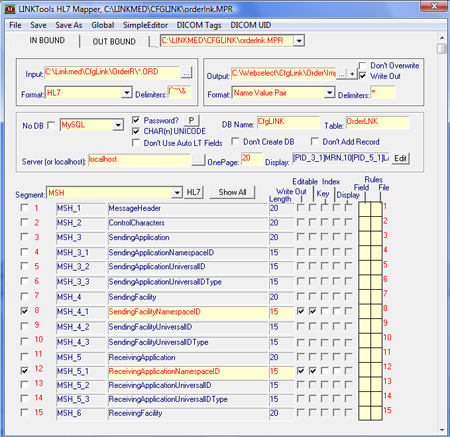

LINKTools® Message Mapper Configuration Window


| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 |10|
